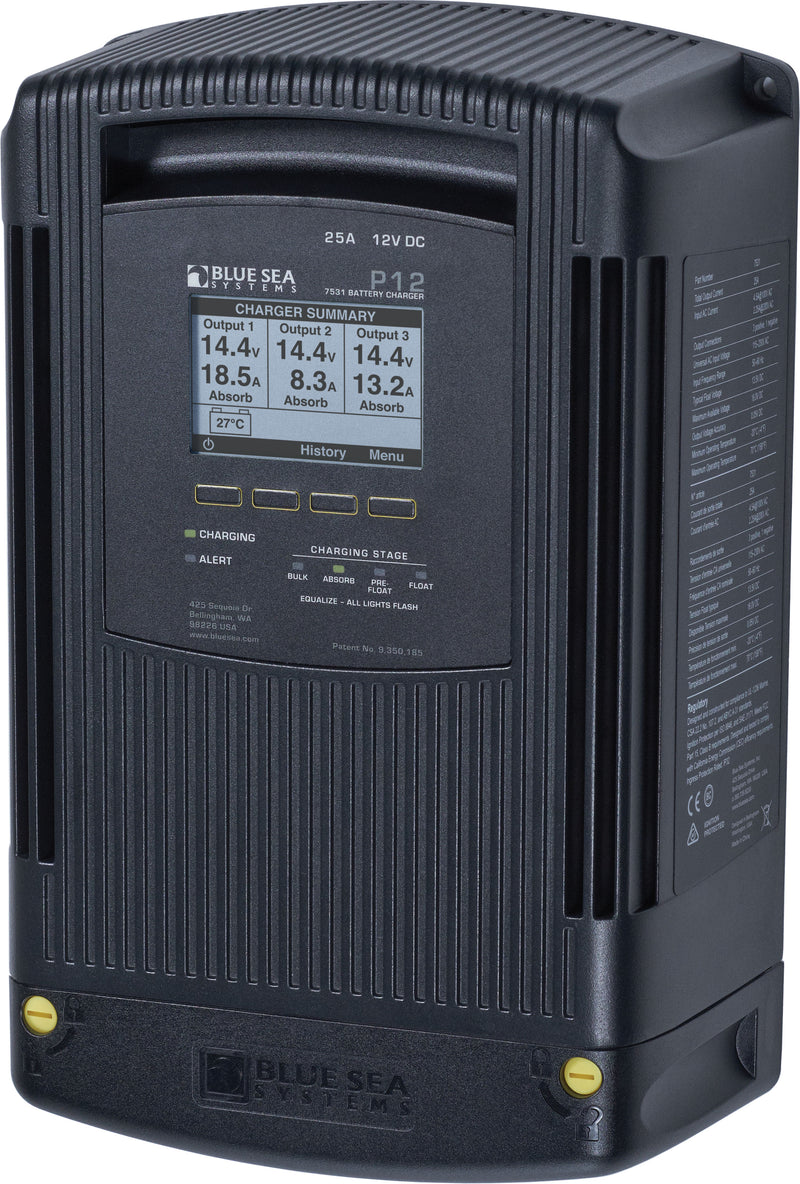

Blue Sea P12 Battery Charger 12v Output 120/230V Input 25Amp 3 Bank
Original price
$812.99
-
Original price
$812.99
Original price
$812.99
$812.99
$812.99
-
$812.99
Current price
$812.99
Availability:
Only 2 left!
Blue Sea Systems P12 25A 12vDC Battery Charger
Model: 7531-BSS- Rugged, finned aluminum case
- Rugged, finned aluminum case
- Power factor corrected for efficient use of AC
- Intuitive diagnostic screens
- User defined charge profiles and customizable settings
- Provides charging for up to three battery banks
- Large, bright display
- Multi-language: English, French, German, Italian, Spanish
- Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
- Battery Temperature Compensation - adjusts charge voltage based on battery temperature
- AC over and under voltage shut down and automatic restart
- Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
- DC over voltage and reverse polarity protection
- Surge and short circuit protection
| 25A | |
| Input AC Current | 4.5A @ 100V A |
| Maximum Output Voltage | 16V DC |
| Nominal Voltage | 12V DC |
| Ignition Protected | Yes |
| Number of Outputs | 1 negative 3 positive |
| Stud Size | M6 |
| Universal AC Input Voltage | 115-230V AC |
| AC Input Frequency | 45-65Hz |
| Output Voltage Accuracy | 0.05V |
| Typical Float Voltage | 13.5V DC |
| Maximum Operating Temperature | 70 deg C |
| Minimum Storage Temperature | -30 deg C |
| Maximum Storage Temperature | 80 deg C |
| Battery Types | AGM Flooded Lead Acid Gel TPPL |
| Recommended for Battery Bank Sizes | 330Ah Maximum 60Ah Minimum |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) M3 15 in-lb (1.69 Nm) M4 |
| Stud Torque | 80 in-lb (9.04 Nm) |
| Dimension H x W x D | 13.03in x 8.46in x 3.66in |
| Warranty | 5 Year |
What's in the Box:
- P12 25A Charger
- Mounting hardware
- Ac Strain Releif
- DC Strain relief
- Temperaur Sensor
- Dielectric Grease
