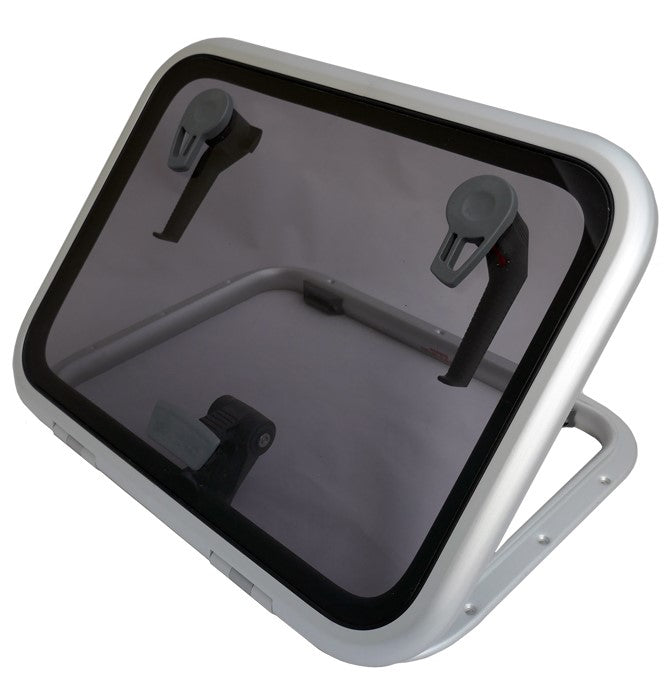

Lewmar Size 30 Low Profile Hatch Flange Base
Original price
$778.95
-
Original price
$778.95
Original price
$778.95
$778.95
$778.95
-
$778.95
Current price
$778.95
Availability:
Only 5 left!
| Support System | Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| Self Supporting | 9/16 | Smoke Grey | 8.6 | 5/16 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Cut-Out Length X1 (in) | Cut-Out Width Y1 (in) | Cut-Out Radii R1 (in) |
| 15 5/8 | 20 3/4 | 1 | 2 7/8 | 12 7/8 | 18 | 1 11/16 |
Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4 in). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
