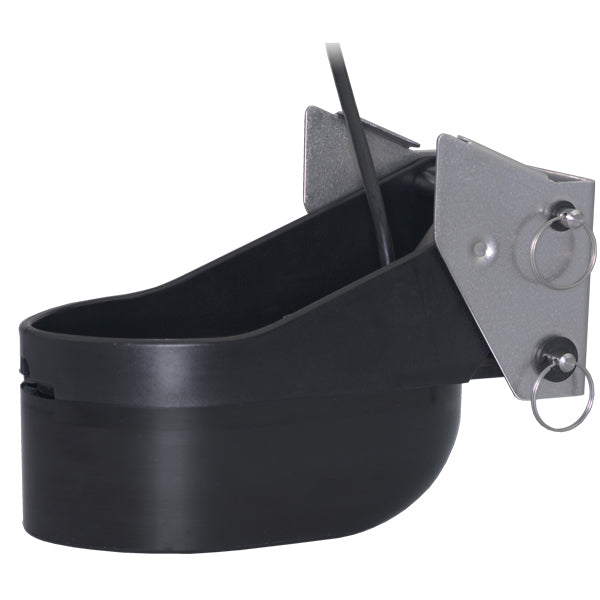

AirmarTM265C-LH Transducer With Mix-N-Match Plug
Airmar TM265C Low/High CHIRP Transom Mount Transducer with Mix-N-Match Plug
Model: TM265C-LH-MM- 8 Internal Broadband Ceramics
- Depth & fast response water temperature sensor
- Urethane housing and stainless steel mounting bracket
- Can retrofit to existing TM258 & TM260 bracket
- Exclusive Xducer ID(R) technology
Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.
Specifically designed for small boats (25 feet-40 feet), the TM265LH Chirps across the following bandwidths:
LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz
Specifications| 42-65 kHz (25 deg to 16 deg beamwidth) | |
| High frequency | 130-210 kHz (10 deg to 6 deg beamwidth) |
| Boat Size | 8 m to 12 m (25 feet to 40 feet) |
| Boat type | Outboards, I/O |
| Hull type | Fiberglass, Wood, Metal |
| Hull Deadrise | Up to 28 deg |
| Acoustic Window | Urethane |
What's in the Box:
- TM265CLH-MM
- Transom Mount Hardware
