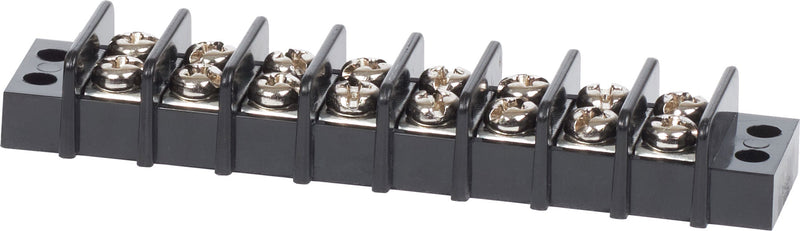

Blue Sea 20A Terminal Block 8 Circuit
Original price
$10.99
-
Original price
$10.99
Original price
$10.99
$10.99
$10.99
-
$10.99
Current price
$10.99
Availability:
Only 4 left!
Blue Sea Systems Terminal Block 20A - 8 Circuit
Model: 2408-BSS- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| 8 | |
| Length | 2.17in (55.12 mm) |
| Maximum Voltage | 300V AC/DC |
| Continuous Rating | 20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
