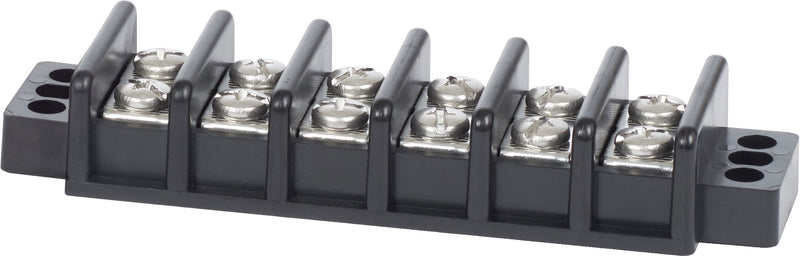

Blue Sea Terminal Block 30A 6 Circuit
Original price
$12.99
-
Original price
$12.99
Original price
$12.99
$12.99
$12.99
-
$12.99
Current price
$12.99
Availability:
12 in stock, ready to be shipped
Blue Sea Systems Terminal Block 30A - 6 Circuit
Model: 2506-BSS- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| 6 | |
| Length | 4.38in (111.25 mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating | 30A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) |
| Terminal Screws | M4 |
| Wire Terminal Size | #8 [M4] |
